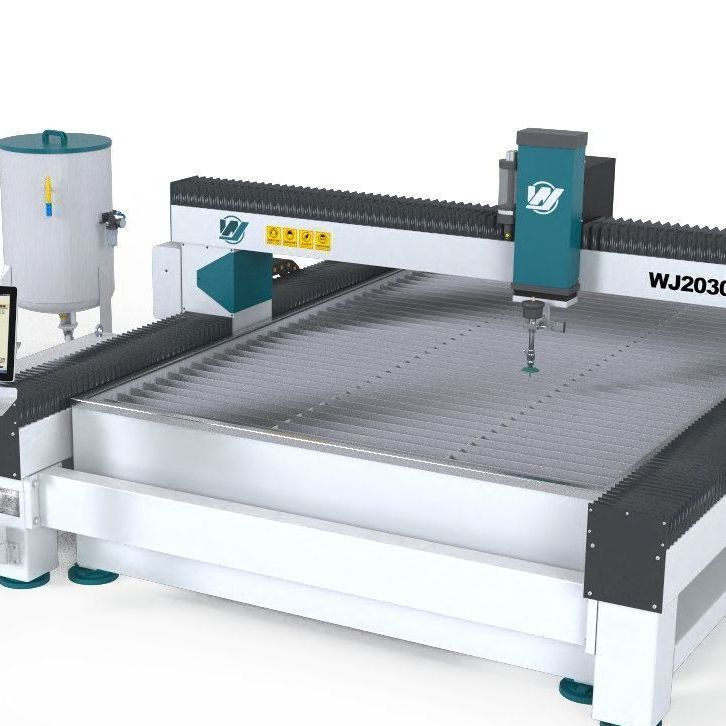

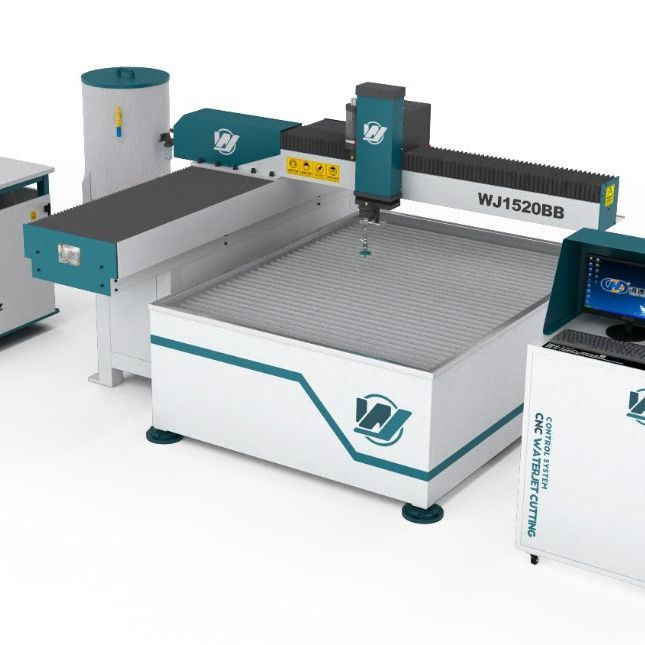

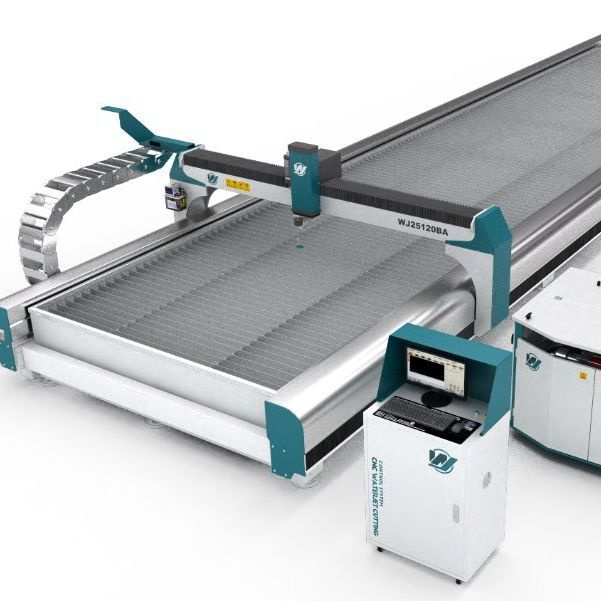

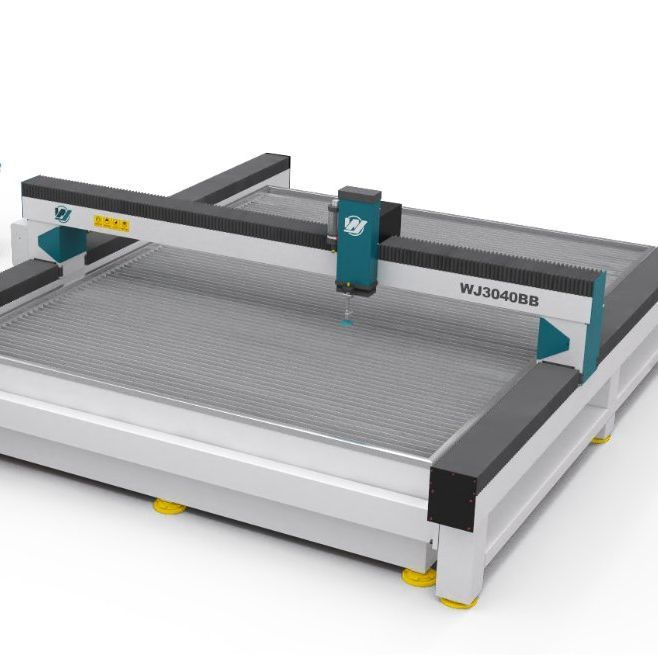

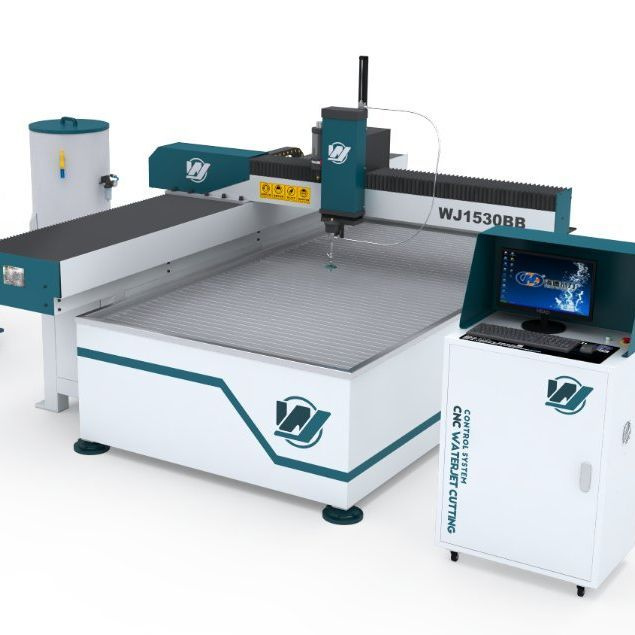

Waterjet CNC Machine for Precision Stone Cutting

The "water cutting" process has the following four major advantages:

(1) It can cut almost everything. From gels to high - hardness or high - elasticity materials and special - structure materials, it can handle them all with one machine, so it is known as the "universal cutting machine".

(2) During cutting, there is no mechanical cutting force damage or thermal effect, and the workpiece does not need repair or stress - relieving treatment.

(3) The cutting seam is narrow (as small as 0.3mm) and the cutting surface is smooth, generally requiring no further processing.

(4) It can be easily combined with a microcomputer - controlled worktable or manipulator to form a numerical control processing system, meeting the requirements of special or complex planar processing.
Availability:
Quantity:
Inquire Add to Basket

  • MJ32010E

  • MEGAJET

The "water cutting" process has the following four major advantages:

(1) It can cut almost everything. From gels to high - hardness or high - elasticity materials and special - structure materials, it can handle them all with one machine, so it is known as the "universal cutting machine".

(2) During cutting, there is no mechanical cutting force damage or thermal effect, and the workpiece does not need repair or stress - relieving treatment.

(3) The cutting seam is narrow (as small as 0.3mm) and the cutting surface is smooth, generally requiring no further processing.

(4) It can be easily combined with a microcomputer - controlled worktable or manipulator to form a numerical control processing system, meeting the requirements of special or complex planar processing.




Water Pump Introductions:

Advanced Waterjet CNC Machine for Precision Stone Cutting
The MEGAJET model P70 series is capable of power input
up to 70 horsepower and flows* approaching twelve
gallons per minute at 40,000 psi. It is the most
advanced and efficient high-horsepower water blast
pump in the industry. Combining the strength and
the durability of a proven power end workhorse with the
unparalleled simplicity, serviceability, and versatility
of the UNx fluid end design, Megajet bare shaft
pumps are the best choice for those building their
own system or replacing a complicated, worn, or
unreliable pump.


Advanced Waterjet CNC Machine for Precision Stone CuttingAdvanced Waterjet CNC Machine for Precision Stone Cutting

COMMENT:
1Bar = 0.1Mpa = 14.5Psi
1L/Min= 0.06m³/H = 0.264Gpm
1Kw = 1.36Hp
* The flow value here refers to the " theoretical " flow rate.
We do not consider the reduced efficiency due to water compressibility and
expansion of pressure components.
* We only show the conventional plunger matching data of the high-pressure pump,
and you can also customize the required plunger parameters to meet your actual use
requirements within the range.



Advanced Waterjet CNC Machine for Precision Stone Cutting

FLUID END  FEATURES:


The MEGAJET40,000 psi  Fluid End is standard on every MEGAJET
40,000 psi unit or bare shaft pump. It is also available as a conversion
package for popular pump models or as an addition to an existing
MEGAJET P70 pump. Please refer to the catalog pages that follow
for details on available models.
The FLUID END Advantage
Serviceability
Reduced downtime and maintenance
Five-minute packing change
Fifteen-minute pop-out valve cartridge change
No special tools or equipment are required
Plungers clamped, NOT threaded
Simplicity
Fewer parts than other 40,000 psi fluid ends
Valve one-piece cartridges include suction & discharge valves,
seats, springs, and seals
Swing-down manifold for easy access to components
Versatility
Fast in-the-field pressure range conversion with simple bolt-on
MEGAJET Fluid Ends
Convertibility of the FLUID END design allows one unit to do the work that
another manufacturer would require multiple units or several hours of
downtime to perform
Other Features
Water-lubricated, single-piece high-lubricity packing ring
Solid carbide plungers and plunger bushings
Specially designed discharge and top port connections that are superior
to industry standard connections
High volumetric efficiency
All pressure-bearing components are precision machined from high-quality
stainless steel
Pulsation dampener built into manifold
All 40K Fluid Ends include a gauge, adapter, and two rupture disc
holders



Specifications:
Advanced Waterjet CNC Machine for Precision Stone Cutting


Versatility
• Fast, in-the-field pressure range conversion with simple
bolt-on MEGAJET Fluid Ends
• Convertibility of the Fluid design allows one unit to do the work that another manufacturer would require multiple units or several hours of downtime to perform


Advanced Waterjet CNC Machine for Precision Stone Cutting

Count on Megajet for the products and value-added services that make the difference!
• Waterblast equipment up to 40,000 psi (2800 bar)

Trailer Options
• Hydraulic or electric brakes
• LED lighting
• ICC trailer lighting
• Ball or ring coupler
• Aluminum wheels
• High-visibility striping around the frame
Advanced Waterjet CNC Machine for Precision Stone Cutting



• Thousands of high-quality parts and accessories in stock and available for same-day shipping
• 24/7 Support Program
• Comprehensive website with online parts ordering
• High-caliber domestic and international sales teams offer unmatched expertise in products and applications to provide the best solution for any job
• Start-up training on all new equipment
• Fully staffed engineering and R&D departments.
• Innovative  Fluid End - up to 40,000 psi (2750 bar) with upgrades available for most popular pumps, including NLB, Butterworth, and Woma

How to choose the right UHP water cleaning machine:
1. Confirm what will the cleaning machine be used for, surface cleaning, tube cleaning, or pipeline cleaning.
2. What pressure is workable for the cleaning work?
3. What flow rate is workable for the cleaning work?
4. Which driving method is better for the cleaning machine? if it is a motor, please confirm the local volt; if it is a diesel engine, please confirm the power.
5. What accessories and how many will be needed? such as guns, nozzles, and hoses.
6. Do you need a trailer or container to load the machine?
7. For safety, please confirm if you need PPE.
8. Which port shall we ship the machine to?


What are different:
• Waterblast equipment up to 40,000 psi (2750 bar)
• Thousands of high-quality parts and accessories in stock and available for same-day shipping
• 24/7 Support Program
• Comprehensive website with online parts ordering
• High-caliber domestic and international sales teams offer unmatched expertise in products and applications to provide the best solution for any job
• Start-up training on all new equipment
• Fully staffed engineering and R&D departments
• Innovative Fluid End - up to 40,000 psi (2750 bar) with upgrades available for most popular pumps.
