MJ14090D
MEGAJET
PRODUCT INTRODUCTION
PRODUCT PARAMETERS
Engine Parameters
Model: 6LTAA8.9-C360 ; Power: 264 KW ; Max. Rotational Speed: 2200rpm
REPLACEMENT PARTS

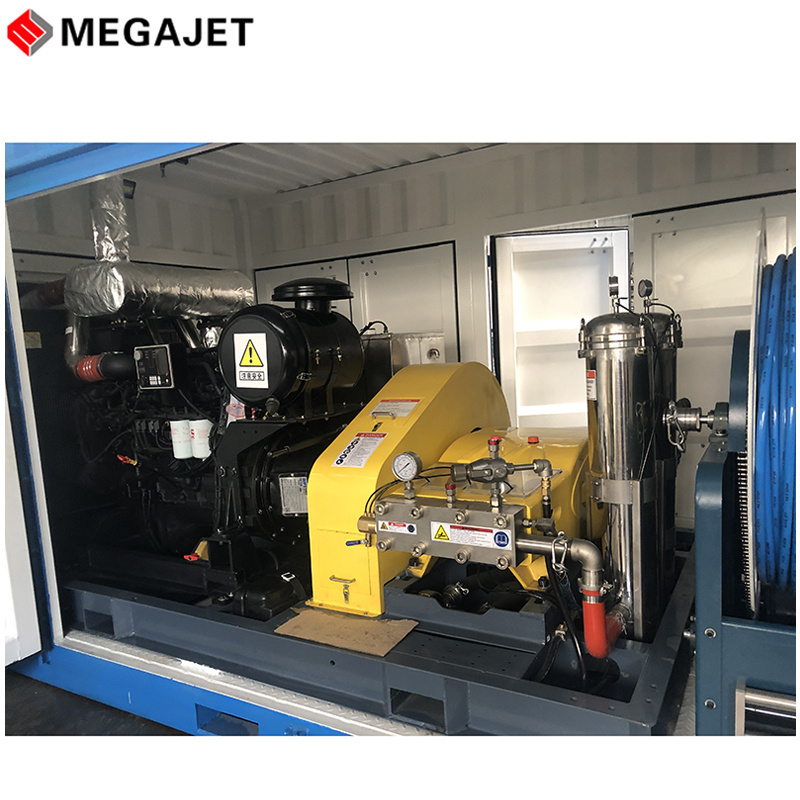

Three-pillar plug high pressure pump
The three-plunger high pressure pump uses the engine power to form the high pressure water output. The high-pressure pump is divided into two parts, the power end and the hydraulic end. The power end contains the components driving the pump, which is also known as the "crankcase" because it contains a crankshaft. The hydraulic end contains the components for use to determine the output pressure of the high-pressure pump, mainly including the pump head, combination valve, packing function, plunger, water seal, pressure regulating valve, pressure gauge, etc. Power end lubricating oil: 85W-90.
FLUID END REPLACEMENT PARTS

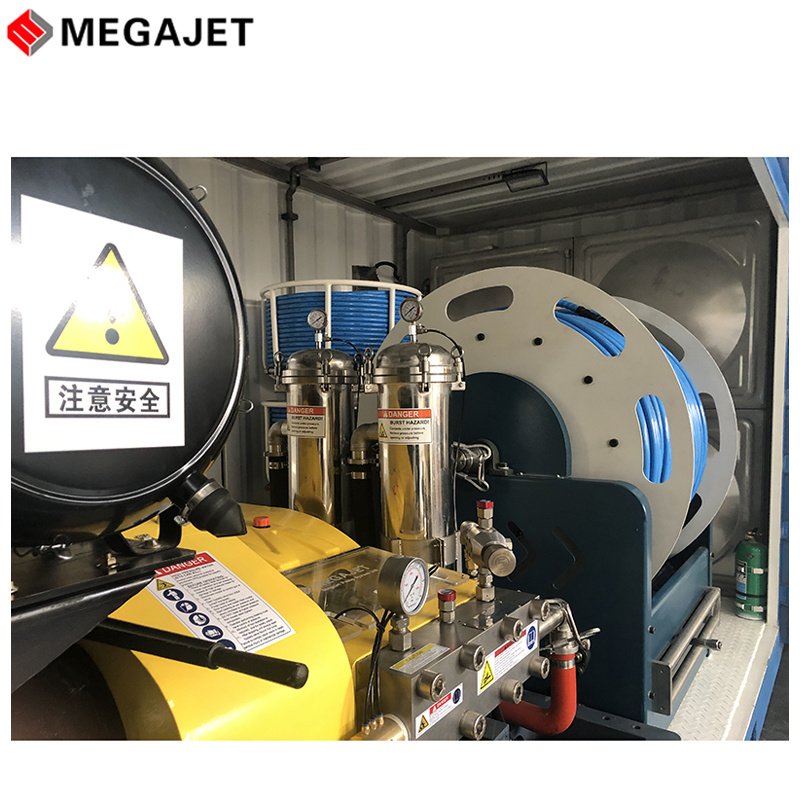

Ultra-Filter
The stainless steel precision filter has six 30 inch 5 micron high precision filter elements filter bags to provide clean water for the pump set. There is a pressure gauge above the filter to observe the water supply pressure of the equipment (the water pressure should be between 1bar and 3bar), and there is an air discharge outlet, where the operator should vent the air through the filter during startup.
Fuel Tank
The equipment is equipped with a fuel tank of about 350L fuel tank, which ensures the continuous operation of the equipment for a long time. The oil tank is equipped with oil level sensor.
Control Panel
The control panel has an emergency stop button, key switch and throttle control button. Real-time monitoring of engine speed, fuel oil volume, engine water temperature, engine oil pressure and other parameters.
Battery
The equipment is equipped with a set of 24V maintenance-free batteries, and the main power supply switch is set on the circuit to open the main switch when starting the equipment and close the main switch when the equipment is disabled.
Booster Pump
The booster pump is used to provide sufficient water pressure for the equipment, connected to the engine by a belt of SPB1490.
Regulating Valve
The pressure regulating valve is used to adjust the working pressure of the equipment in the range of 0~1400 bar. When working, the use pressure is adjusted through the handle on the top of the valve body. The rear of the pressure regulating valve is used to export the excess flow. This return pipe flows directly to a drain through a water pipe (it can also be connected to the inlet end of the equipment but not recommended)
Pressure Gage
The pressure gauge is used to display the system pressure in real time.
Safety explosion-proof Valve:
Passive overpressure protection device, in the high pressure water jet equipment can prevent the system pressure is too high to protect the system safety, role, better guarantee the system and operation safety, when the system pressure over blasting pressure limit, blasting will implement blasting, so that the water flow from the explosion-proof base, makes the system pressure relief.
POWER EDN REPLACEMENT PARTS
Prepare for working:
1. Park the equipment in a hard, flat plane.
2. Check the height of the engine coolant level and the oil level height. Refer to the engine manual for more information.
3. Check the oil level in the plunger pump, and the correct oil level should be between the middle and the bottom of the oil level window. If the window cannot see the oil level, the lubricating oil type in the pump body: heavy load gear oil 85W-90.
4. Check the filter element in the filter, and replace it if necessary.
5. Check all the screws at the joints of the equipment to ensure that the screws are fastened.
6. Connect the water supply hose and verify that the drainage valve is closed.
7. Open the water supply valve and drain the air in the filter to ensure that any valve on the water inlet pipe must be opened.
8. Install the outlet high pressure hose to the outlet of the equipment, and install a safety lock between the hose and the equipment.
Main uses and scope of use
★ Electric power industry: mainly used for air preheater, steam turbine condenser and steam turbine blade cleaning and scaling.
★ Iron and steel industry: mainly used to remove the converter fan, flue dust, cleaning continuous casting machine debris.
★ Petrochemical industry: mainly used for all kinds of heat exchange equipment, pressure vessel interior and exterior wall cleaning and descaling.
★ Oilfield industry: mainly used for crude oil residue of drilling platform, paraffin of storage tank and internal and outer wall cleaning of pumping pipe.
★ Oil industry: mainly used for evaporator, heater, pipe and other equipment cleaning.
★ Sugar industry: mainly used for evaporator, pipeline, storage tanks and other equipment cleaning.
★ Pharmaceutical industry: mainly used for boiler, heat exchanger, pipeline, reactor cleaning and decontamination.
★ Construction industry: mainly used for surface chisel hair, cleaning.
★ Casting industry: mainly used for casting cleaning, removal of metal oxide skin.
★ Water supply industry: mainly used for deep well cleaning and sand fishing.
★ Automobile industry: mainly used for automotive coating workshop barrier, skid paint removal.
★ Cement industry: mainly used to remove the outer wall of the pipeline and production equipment mud scale layer.
★ Municipal industry: mainly used for sewer dredging, building cleaning.
★ Aviation industry: mainly used for airstrip oil removal and rubber removal.
★ Navigation industry: mainly used for hull, dock paint removal, rust removal, Marine life.
