Who we are:
We, JCM LOAD MONITORING, are a specilized manufacturer in load monitoring located in Aberdeen, Uk and have extensive experience in the load measuring industry and during this time we have dealt with every application that you need to find a solution for. We can assist with your application from our offices in Aberdeen and we also have skilled engineers who travel the globe helping and assisting customers onsite.
We have a wide range of tension and compression load cells from 250 Kgs to 600 Tonne that are available from stock for purchase or rental. All new equipment is supplied complete with a calibration and proof test certificates. Full user instructions are provided with re-calibration instructions available on request.
In conjunction with this we have a fully equipped facility which offers a repair and calibration service which is fully traceable to National Standards that is carried out under our certified ISO9001 quality system.
What is the decription:

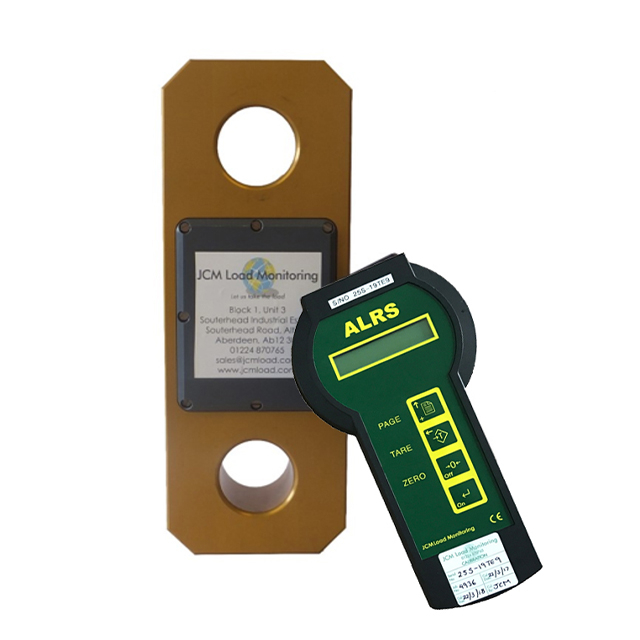

All our load links are manufactured from anodized aerospace grade aluminum, allied with our full O-ring sealing gives ingress protection of IP67.
Please confirm any critical dimension before ordering
Capacity | A | B | C | D | E | Weight |
2.5t | 23 | 215 | 38 | 270 | 25 | 2.4 |
5t | 27 | 240 | 38 | 292 | 38 | 2.6 |
12.5t | 44 | 226 | 130 | 324 | 50 | 5.3 |
25t | 55 | 240 | 134 | 360 | 70 | 7.1 |
35t | 62 | 290 | 140 | 440 | 70 | 9.4 |
50t | 78 | 298 | 163 | 476 | 85 | 15.0 |
75t | 86 | 306 | 190 | 500 | 100 | 17.0 |
100t | 100 | 346 | 196 | 556 | 124 | 26.1 |
150t | 120 | 396 | 244 | 680 | 127 | 47.1 |
200t | 132 | 442 | 280 | 784 | 150 | 79.0 |
250t | 146 | 460 | 300 | 844 | 150 | TBA |
300t | 160 | 582 | 400 | 1000 | 150 | TBA |
400t | 180 | 614 | 400 | 1098 | 200 | TBA |
500t | 190 | 600 | 490 | 1100 | 200 | TBA |
Why us:
360°(600m) radio signal transfer
Internal antenna
Linear construction
Up to 500 hour battery life
Simple battery change out
Reduced costs
Workable under bad weather such as harsh heavy rain, snow and dust.
Compact structure and lighter weight
Works with kinds of controllers
Safety factor 5:1 to ensure safety performance
Accuracy 0.1% for full range
Specific calibration report for each load cell
Overloading alarm
Very light weight from anodized aerospace grade aluminum
Where to use:
For design and quality control in SHIPYARD, CRANE MUNUFACTURING, IRON & STEEL, METALLURGY & CASTING, SPACECRAFT MANUFACTURING, AUTOMATION, RAILWAY PRECAST BEAM, HARBOR CRANE and anywhere where heavy load monitoring is needed.
When we available:
We are 7x24 hour available for global consultant and inquiries from our exclusinve agents around the world, who also burden our quick response to before- and after- sales service anytime.
How to order:
Units available from 2.5t to 500t.
Units from 2.5t to 50t are supplied in an IP67 transit case;
75t to 500t units supplied in a hinged wooden transit case.
Air shipping are recommended for a small quantity or urgent order and sea shipping for a large amount.
